Alderon RS is a single-ply uPVC roof, designed to meet a longer term solution for roofs that demand high performance at a lower life cycle cost.

Alderon RS is very light weight, and practically opaque, protecting you and your love ones from the harmful UV rays. When it comes to the industrial applications, Alderon RS is a budget friendly roof that exhibits outstanding resistance to a broad range of chemicals.

alderon rs 1000
icon features atap upvc alderon kuat


Alderon RS is reinforced with a unique formula that makes Alderon RS very strong.

logo alderon rs premium upvc cirrugated roofing
icon atap alderon rs ringan



Alderon RS is a single-ply uPVC roof which has very light weight. Weighing only 2 kg per linear meter, making it easy in the installation process.

icon durable atap upvc alderon tahan lama

Superior Durability

and Color Retention

Alderon RS is fortified by UV resistant feature to protect the sheet from the sun’s ultra violet radiation and severe weather condition, ensuring not only its durability but also the beauty of Alderon throughout the years.

icon alderon anti karat tidak berkarat



Alderon RS is made to win out over the corrosive environment that traditional roofs cannot resolve at a feasible cost. Alderon RS is resistant to rot, rust, blistering and flaking.

icon atap alderon padam sendiri jika terbakar


Alderon RS is difficult to burn, it is a self-extinguishing material, the flame will stop as soon as the source of the fire is removed.

icon alderon tahan bahan kimia chemical resistant



Alderon RS is highly engineered to withstand the challenging environment such as harsh chemical and industrial pollutant. It is resistant to most acids, alkalis, organic solvents, oil and grease.


Alderon RS
Singlewall Corrugated


spesifikasi ukuran alderon rs
Profile Illustration Thickness* (mm) Width (mm) Effective Width (mm) Height (mm) Pitch (mm) Weight (kg/Lm) Length* (M) Colors
Spesifikasi Ukuran Alderon RS Roma
1.20 860 764 17 76 2.10 1.8, 2.1, 2.4, 3, 4, 5, 6 White, Grey, Lite Grey, Soft Blue
1.45** 860 764 17 76 2.53 4, 5, 6, 7, 8
Spesifikasi Ukuran Alderon RS Greca
1.20 760 688 17 76 2 1.8, 2.1, 2.4, 3, 4, 5, 6 White, Grey, Lite Grey, Soft Blue
1.45** 760 688 17 76 2.4 4, 5, 6, 7, 8
Spesifikasi Ukuran Alderon RS Trimdeck
1.20 830 765 29 190.5 2.1 1.8, 2.1, 2.4, 3, 4, 5, 6 White, Grey, Lite Grey, Soft Blue
1.45** 830 765 29 190.5 2.6 4, 5, 6, 7, 8
RS 1000
Spesifikasi Ukuran Alderon RS Trimdeck 1000
1.20 1,071 1,000 30 250 2.67 1.8, 2.1, 2.4, 3, 4, 5, 6 White, Lite Grey, Soft Blue

*Length can be customized, subject to minimum quantity
**For project purpose
Kg/Lm is weight per linear meter

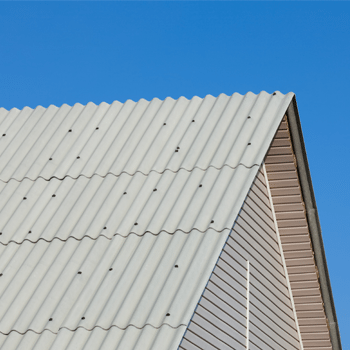

See the projects using our Alderon RS Single Wall Corrugated.

Alderon RS Application - Proyek Aplikasi

Alderon RS Brochure

Get complete information about the specifications and features of Alderon RS product.

The Other Features
Of Alderon RS

  • null

    Corrosion Free

  • null

    Fire Performance

    Self Extinguishing

  • null

    Easy to Cut

    Drill and install with even a very
    basic DIY tools

  • null


    Enable arched roofs

  • null

    Requires Very

    Minimum Maintenance
